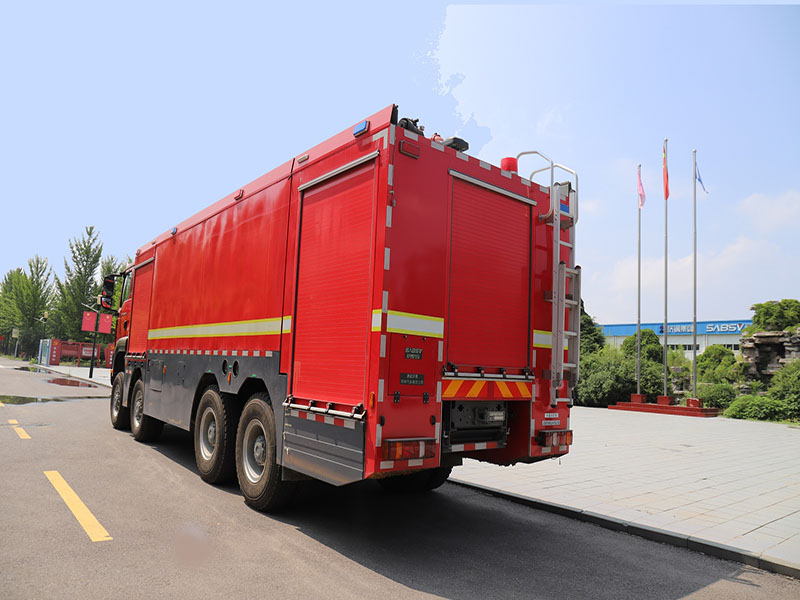

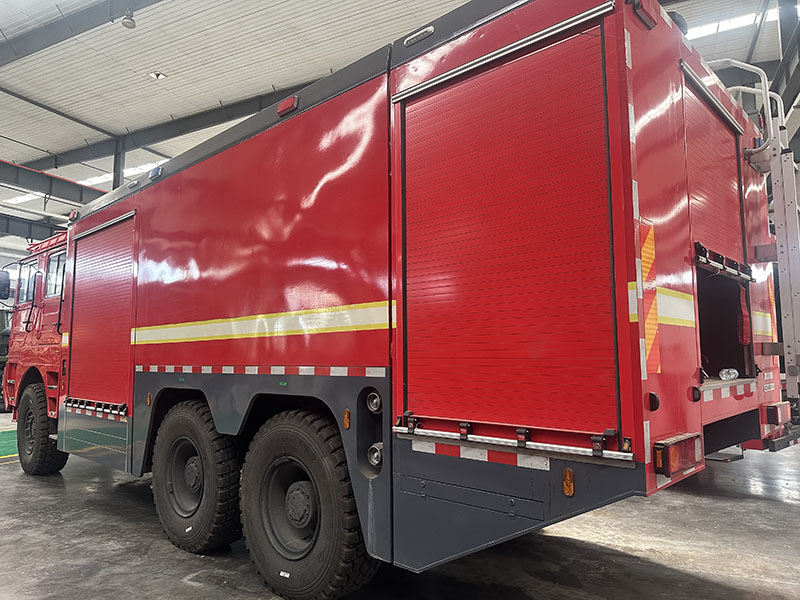

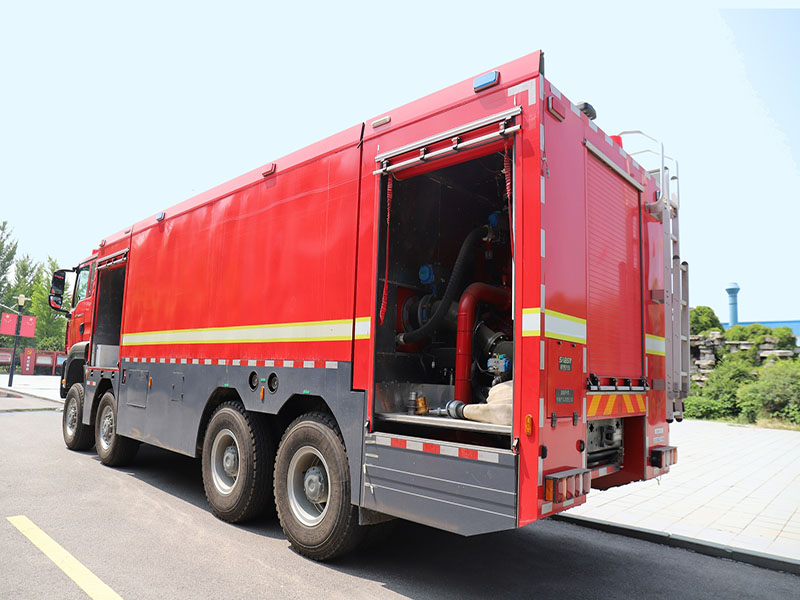

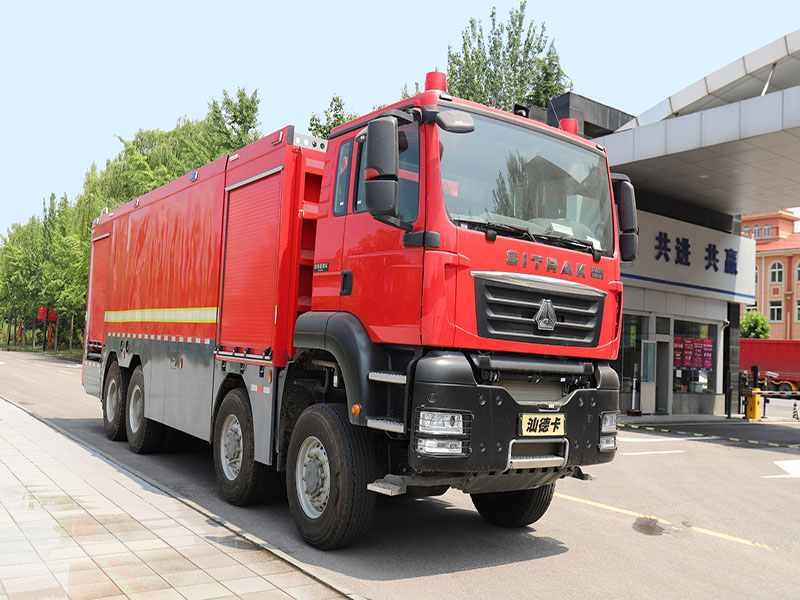

Heavy Water Tank Fire Truck
Find Similar Products
Product information
| Full load total mass | ≤38000kg |
| Engine brand | WP10H400E62(WEICHAI) |
| Horse power | 400hp |
| Rated power/ rotation rate | 371kW/1800r/min |
| Emission | Euro 6 |
| Displacement | 9839ml |
| wheelbase ( vehicle)(mm) | 1800+3600+1400(mm) |
| full loaad 0~60km/h acceleration time | 38s |
| Number of passengers (including drivers) | 3 |
| Max speed | 85km/h(full load) |
| Specific power | ≥7kW/t |
| Drive model | 8×8 left hand drive |
| Tyre size & number | 385/65R22.5(1st,2nd axle);12.00R20(3rd, 4th axle) |
| Transmission | FAST gearbox, manual, 12 gears forwards with 2 reverse |
| Generator | 28V/3kW |
| Battery | 2×12V/180Ah |
| Fuel tank capacity | 400L |
| Environmental temperature for use | —41℃~+46℃ |
| Water tank | 18,000 L |
| Fire pump Pressure | ≥1.0Mpa |
| Fire pump Max suction depth | 7m |
| Fire pump Maximum vacuum degree | ≥85kPa |
| Fire pump Flux | 140L/M |
| Fire pump Time of drawing water (s) | ≤100s |
| Fire fighting nozzle range | ≥90m |
| Rated Working pressure | ≤1Mpa |
| Horizontal rotation | 350° |
| Tilt rotation | —8°~78° |
Product description
Water storage function
The water storage capacity of a water tank fire truck can reach 10-20 tons or even more. This enables it to provide sufficient water at the fire scene, especially in areas where there are no fire hydrants or other water sources to replenish, playing a key role in water supply.

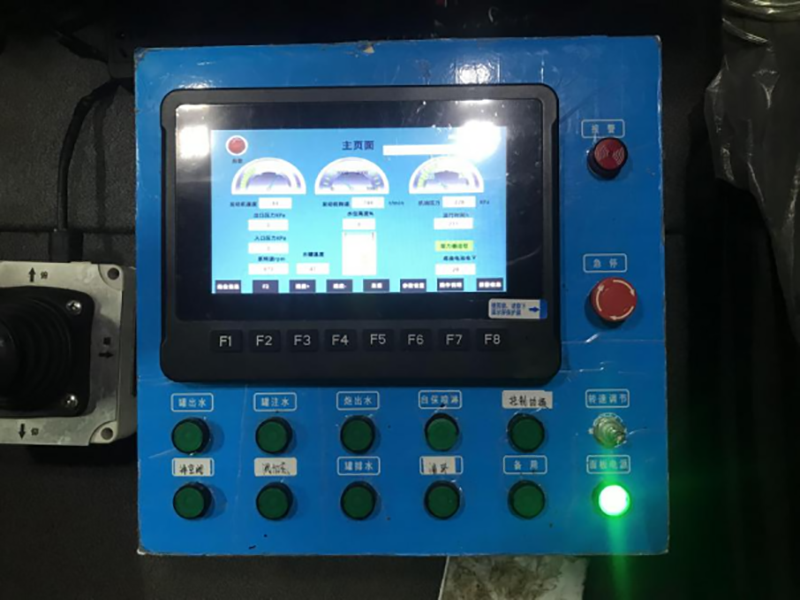

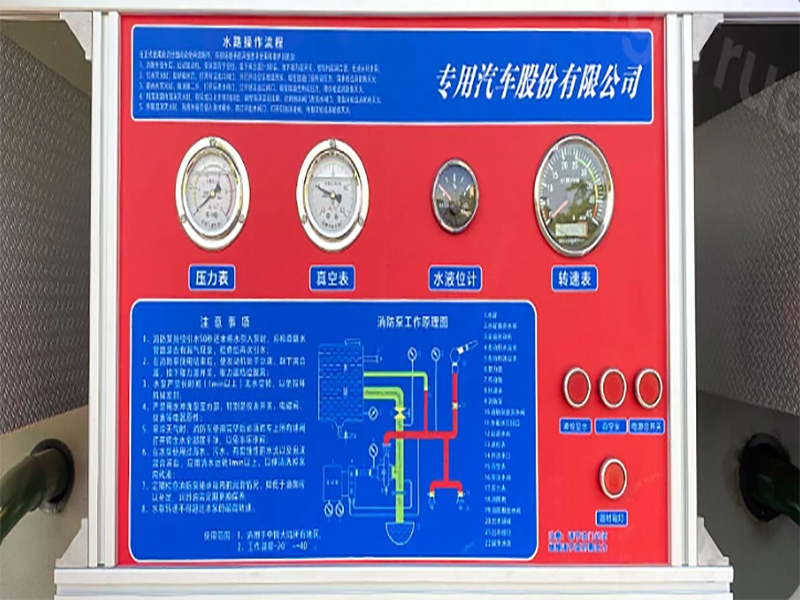

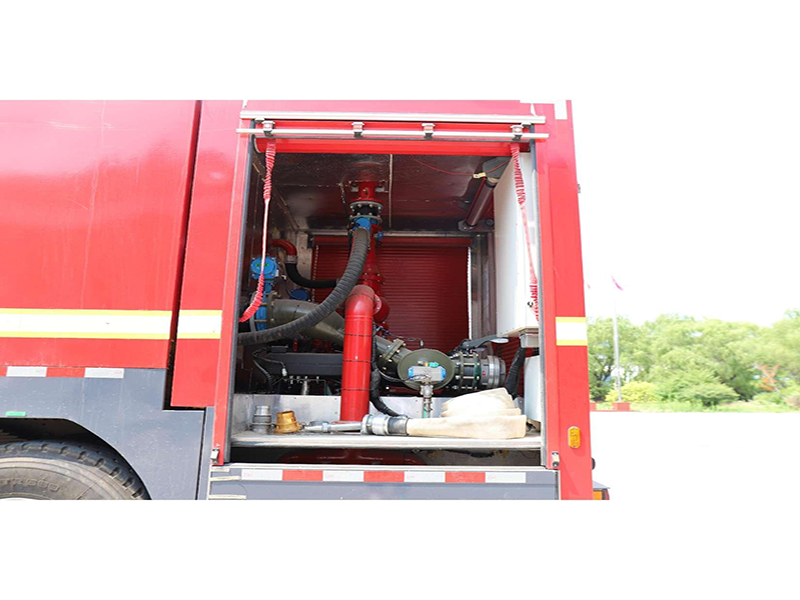

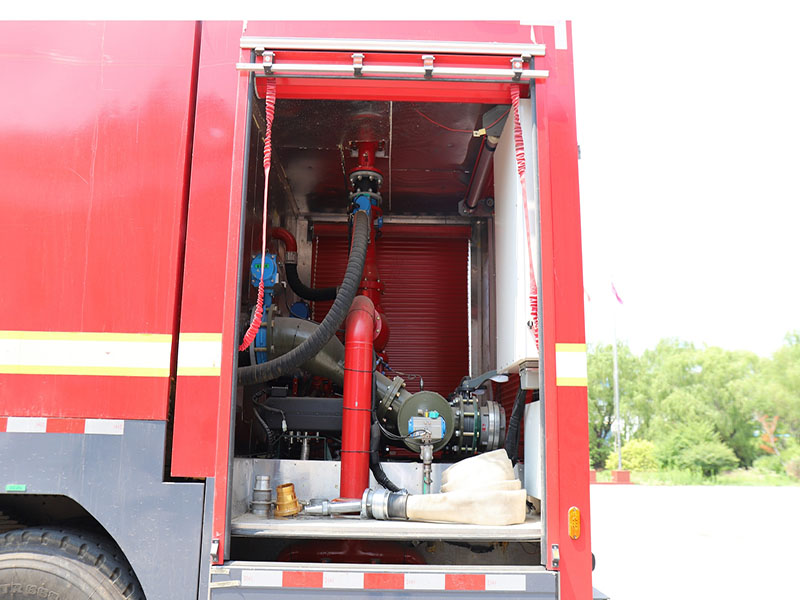

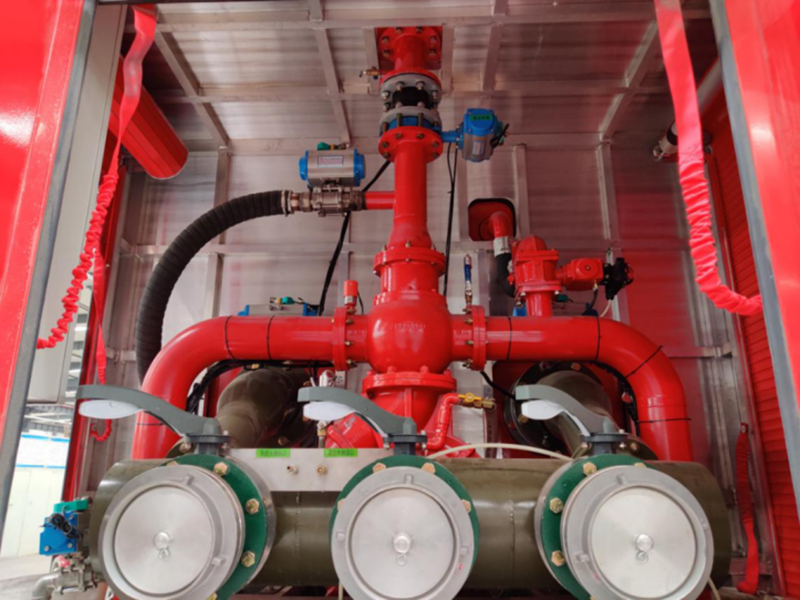

Fire pump system
The fire pump can generate strong pressure to transport the water in the water tank at high pressure. This ensures that the water can be sprayed to a higher and farther position to effectively extinguish the fire.
Spray system
Some water tank fire trucks are also equipped with water cannons, which are usually installed on the top of the fire truck. Its spray flow is larger and has a longer range than that of a water gun. It can rotate 360 degrees and can flexibly adjust the spray direction to extinguish large-area fires or fires in tall buildings.
