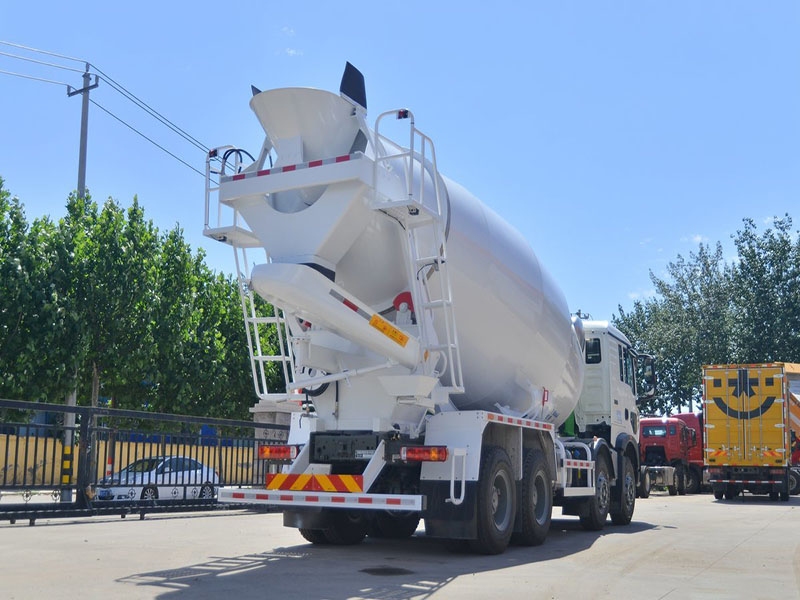

Sinotruck 8X4 Concrete Mixer Truck

$ Price on request
Product Details
Chassis:Sinotruck
Drive type:8X4
Mixer Capacity:7.95m³
Emission Standard:EUROP VI
SABSV
+86 17753119050
We provide high-quality vehicles for global industries, includes fire trucks, ambulances, mobile command centers, refrigerated trucks, concrete mixer trucks, tractor heads, and tipper trucks. Our offerings ensure reliability and performance, with tailored solutions for clients' unique needs.

Find Similar Products

  • Mobile Command Vehicle

    Mobile Command Vehicle

    Emission Standard:Euro 6
    Pressure:1.2MPa
    Flow Rate:40KG/s
    Tank Volume:6000L

    $ Price on request

    Details
  • Coaster Command Vehicle

    Coaster Command Vehicle

    Emission Standard:Euro 6
    Pressure:1.2MPa
    Flow Rate:40KG/s
    Tank Volume:6000L

    $ Price on request

    Details
  • BYD T5 electric refrigerated truck

    BYD T5 Electric Refrigerated Truck

    Poyload:1.05tons
    Chassis:BYD
    Van Capacity:44m³
    Min Temperature:-18

    $ Price on request

    Details
  • Shacman F3000 concrete mixer truck

    Shacman F3000 6X4 4.05m3 Concrete Mixer Truck

    Drive type:Shacman
    Productivity:6X4
    Mixer Capacity:4.05m³
    Emission Standard:EUROP V

    $ Price on request

    Details
  • Fonton small refrigerated truck

    FONTON 4X2 3.12m Small Refrigerated Truck

    Poyload:1.595tons
    Chassis:FONTON
    Van Capacity:EURO 6
    Min Temperature:-18℃

    $ Price on request

    Details
  • Dongfeng refrigerated truck

    Dongfeng 8X4 9.25m Refrigerated Truck

    Poyload:17.77tons
    Chassis:Dongfeng
    Van Capacity:Euro 6
    Min Temperature:-18℃

    $ Price on request

    Details
  • ISUZU refrigerated truck

    ISUZU 4X2 4.1m Refrigerated Truck

    Poyload:1.1tons
    Chassis:ISUZU
    Van Capacity:EURO 6
    Min Temperature:-18℃

    $ Price on request

    Details
  • Airport Main Foam Fire Truck

    Chassis:Sinotruk
    Tank Volume:10000L
    Flowing Rate(L/s/Mpa):80L/S@1.0MPa, 60L/S@1.6MPa
    Covering Range: water >70m; Foam> 65m

    $ Price on request

    Details
  • Iveco ambulance

    Iveco Monitor Optional Negative PressurenAmbulance

    Truck Brand:Iveco
    Emission Standard:EURO 6
    Type:Long wheelbase
    Medical Equipment:With

    $ Price on request

    Details
  • JMC Ambulance

    JMC Transport Monitor Optional Ambulance

    Truck Brand:JMC
    Emission Standard:EUROP 6
    Type:Long wheelbase
    Medical Equipment:With

    $ Price on request

    Details
  • Product information

    Drive type8x4
    Body size9.83×2.53×3.95m
    Front overhang/rear overhang 1.43/2.25m
    Wheelbase 1800+3050+1350mm
    Rated load 17.45tons
    Vehicle weight 13.42tons
    Maximum speed 82km/h
    Front track/rear track Front: 2015/2015; Rear: 1870/1870mm
    Engine Model Weichai WP8.340E51
    Fuel Type Diesel fuel
    Number of cylinders 6
    Maximum output power 250kw
    Maximum horsepower 340hp
    Displacement 7.8L
    Emission standards EUROP VI
    Vehicle type Concrete mixer truck
    Chassis brand Sinotruck heavy truck
    Stirring dynamic volume 7.95m³
    Chassis brand Sinotruck heavy truck
    Chassis model ZZ1317N306GE1
    Chassis series Howo TX
    Speed ​​Ratio 5.73
    Number of springs 11/11/12

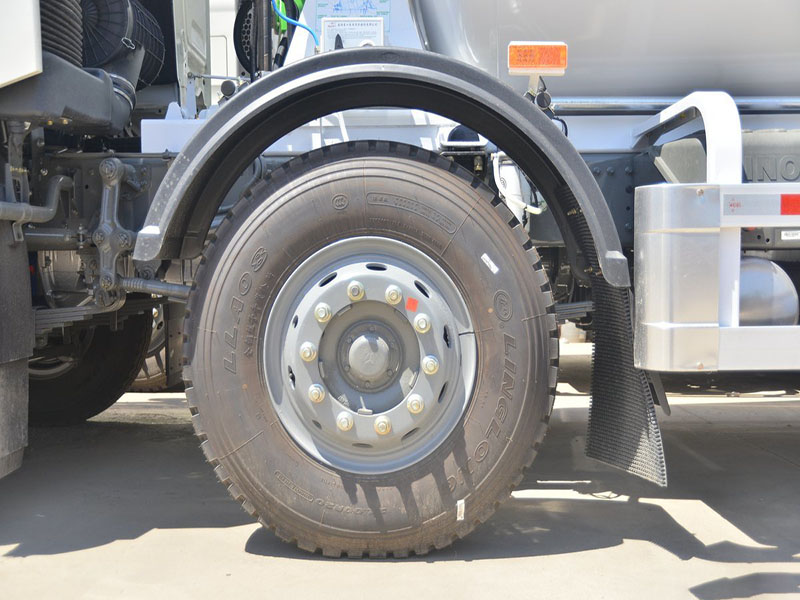

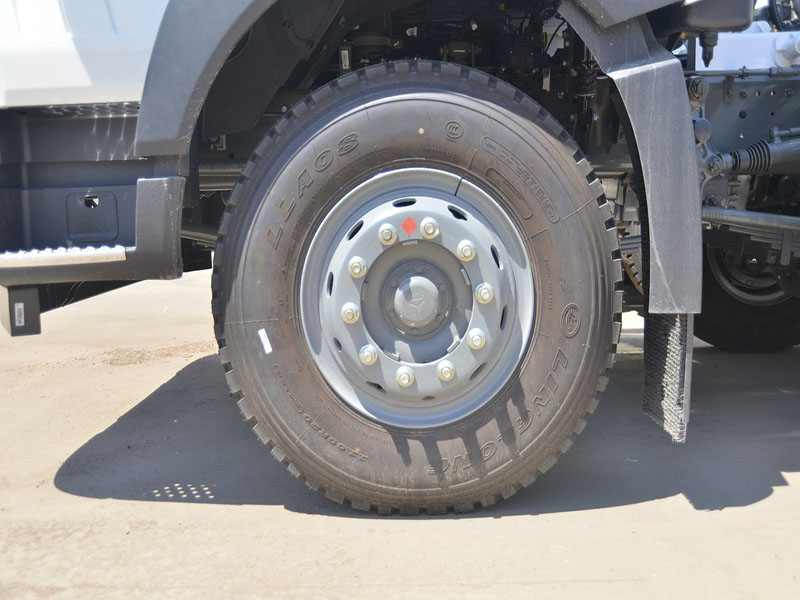

    Number of tires 12
    Tire specifications 11.00R20
    Rated speed2100PRM

    Product description

    1.Powertrain

    1.1 The 350-horsepower engine is powerful enough to meet the driving and operating needs of concrete mixer trucks under various road conditions.

    1.2 Matching the engine customized by Weichai, the characteristics of low speed, large displacement and high torque not only bring excellent power performance, but also facilitate the vehicle’s starting, acceleration and heavy-load driving.

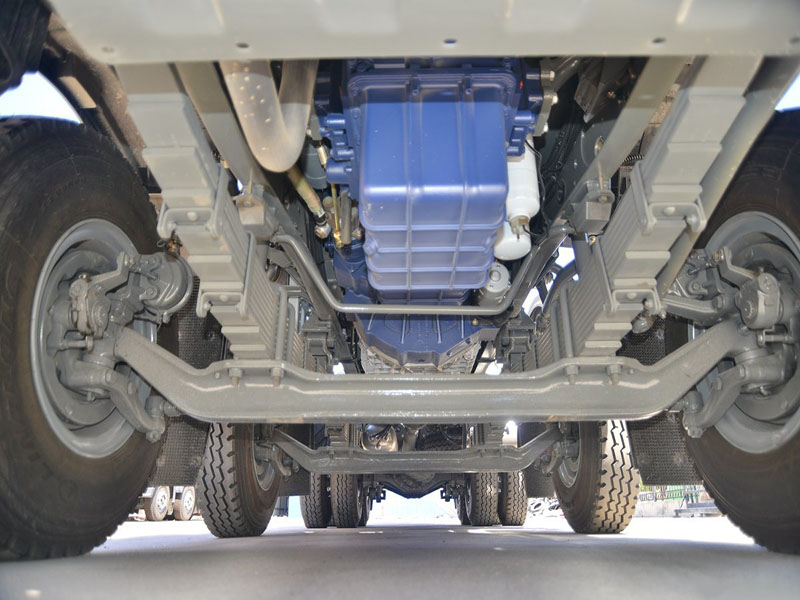

    2.Strong chassis

    2.1 The chassis of Shaanxi Automobile heavy trucks has always been known for its durability. The chassis of Delonghi M3000S has been professionally designed and optimized to withstand the weight of the concrete mixing tank and various stresses during transportation, ensuring the stability of the vehicle. sex and safety.

    2.2 High load-bearing capacity. The 8X4 drive form provides a strong load-bearing capacity, which is suitable for transporting heavy goods such as concrete. At the same time, the reasonable axle load distribution enables the vehicle to maintain good handling performance even when fully loaded.

    3.Comfortable cab:

    3.1 The cab is spacious and has smooth lines, providing ample space for the driver and reducing fatigue after long hours of driving. The seat adopts Grammer integrated airbag seat and is also equipped with seat heating function to improve driving comfort.

    4. Good vision

    4.1 The LED headlights on both sides of the front of the car are simple and modern in design, with good lighting effects, providing the driver with a good field of vision at night or in poor light conditions, improving driving safety.
